Introduction: The Importance of Spark Plugs, Ignition Coils, and Coil Packs
When it comes to vehicle maintenance, understanding the inner workings of your car’s ignition system is crucial. Spark plugs, ignition coils, and coil packs are all vital components that work together to ensure the engine runs smoothly. While they are often mentioned in the same breath, they serve different roles. In this comprehensive guide, we’ll explore what each of these components does, how they work, and the differences between them. Whether you’re a car enthusiast or simply someone looking to maintain your vehicle, knowing these differences will help you make informed decisions.

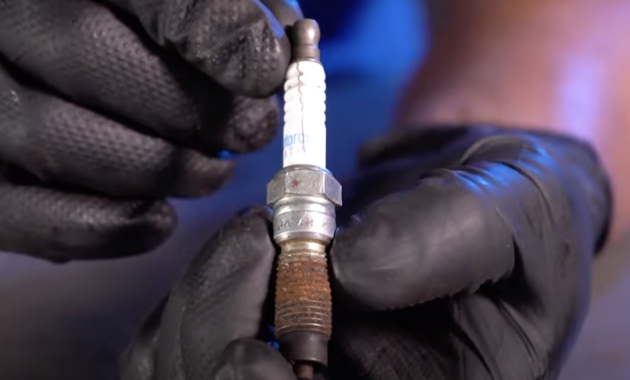

What Are Spark Plugs?
Definition and Purpose
A spark plug is a small but essential component in your vehicle’s engine. It is responsible for igniting the air-fuel mixture within the engine’s cylinders. Without a spark plug, the combustion process wouldn’t occur, and your vehicle wouldn’t run. The spark plug ignites the mixture by creating a spark at the tip, which causes the combustion of the fuel-air mixture and powers the engine.
How Spark Plugs Work
The spark plug is positioned in the combustion chamber of each engine cylinder. When the ignition system sends electricity to the spark plug, it creates a spark that ignites the compressed fuel-air mixture. The spark plug must function reliably, igniting the fuel mixture at exactly the right moment for efficient combustion. Spark plugs are designed with a gap between their electrodes, where the spark is created. This gap is crucial for determining the spark intensity.
Types of Spark Plugs
There are various types of spark plugs, with different materials and designs tailored to specific engines and driving conditions:
- Copper Spark Plugs: These are the most common and affordable type, but they tend to wear out faster.
- Platinum Spark Plugs: These last longer than copper plugs and offer better performance.
- Iridium Spark Plugs: Known for their durability and excellent performance, iridium plugs are often used in high-performance or modern engines.
When Should You Replace Spark Plugs?
On average, spark plugs need to be replaced every 30,000 to 100,000 miles, depending on the type. Common signs that spark plugs may need replacing include:
- Difficulty starting the vehicle
- Poor engine performance
- Misfiring or rough idling
- Reduced fuel efficiency
What Are Ignition Coils?
Definition and Purpose
An ignition coil is a key part of the ignition system. Its job is to convert the low voltage from the vehicle’s battery into the high voltage needed to generate a spark at the spark plugs. The coil is responsible for supplying the spark plugs with enough energy to ignite the air-fuel mixture.
How Ignition Coils Work
The ignition coil works by utilizing electromagnetic induction to step up the battery’s low voltage to a higher voltage. The coil has two windings: a primary and a secondary coil. When current flows through the primary coil, it creates a magnetic field. When the current is cut off, this magnetic field collapses and induces a high voltage in the secondary coil. This high voltage is then directed to the spark plug, generating a spark to ignite the fuel mixture.
Types of Ignition Coils
- Traditional Ignition Coils: These are used in older vehicles with a distributor and are often one coil per vehicle.
- Coil-On-Plug (COP): This modern system features an individual coil for each cylinder. Each coil is mounted directly on the spark plug, eliminating the need for spark plug wires.
- Distributorless Ignition System (DIS): In this system, a single coil pack is used to supply voltage to multiple cylinders.
When Should You Replace Ignition Coils?
Like spark plugs, ignition coils also wear out over time. Symptoms of a failing ignition coil include:
- Engine misfires or rough idling
- A decrease in acceleration power
- Poor fuel economy
- The check engine light coming on
What Are Coil Packs?
Definition and Purpose
A coil pack is a modern version of the ignition coil. It is essentially a collection of coils bundled together in one unit. Coil packs are used in newer vehicles to make the ignition system more compact, efficient, and cost-effective. Each coil within a pack sends a high voltage to its respective spark plug.
How Coil Packs Work
In a coil pack, multiple ignition coils are wired together. In most vehicles, each coil in the pack serves one cylinder of the engine. When the coil pack receives power from the vehicle’s battery, it generates the necessary voltage for each spark plug, ensuring that each cylinder gets the spark it needs for combustion.
Benefits of Coil Packs
- Compact Design: Coil packs save space in the engine bay and simplify the ignition system.
- Efficiency: Having multiple coils in one unit makes it easier for each cylinder to get the appropriate spark.
- Reliability: Coil packs are more reliable than older systems since they reduce the number of individual parts in the system.
When to Replace Coil Packs
Like ignition coils, coil packs can eventually fail. Symptoms of a faulty coil pack include:
- Engine misfires
- Loss of power and acceleration
- Poor fuel efficiency
- Rough engine idling
Spark Plugs vs Ignition Coils: Understanding the Difference
While both spark plugs and ignition coils are part of the ignition system, they have distinct roles. Spark plugs are responsible for igniting the fuel-air mixture, while ignition coils provide the necessary electrical energy for the spark plug to generate that spark.
- Spark plugs are consumable items that need to be replaced periodically.
- Ignition coils are durable parts that can last longer but still need replacement if they fail.
Without a properly functioning ignition coil, the spark plug would not receive enough voltage to create a spark. Similarly, without a spark plug, the ignition coil would not have a purpose. Together, these components work to ensure that your vehicle runs efficiently.
Coil Packs vs Ignition Coils: Which Is Better?
Both coil packs and individual ignition coils serve the same purpose but in different configurations. The choice between them depends on the vehicle’s design and ignition system.
- Coil packs are commonly found in modern vehicles with a distributorless ignition system (DIS). They are more compact and provide an easier way to supply voltage to multiple cylinders.
- Individual ignition coils are used in older vehicles or those with a coil-on-plug system, where each cylinder has its own coil mounted directly on the spark plug.
The main advantage of coil packs is their efficiency and compactness, while individual coils are typically used in vehicles that require separate coils for each cylinder.
Coil-On-Plug vs Coil-Near-Plug: What’s the Difference?
There are two main ignition coil configurations: coil-on-plug (COP) and coil-near-plug (CNP).
- Coil-On-Plug (COP): The coil is mounted directly on top of each spark plug. This eliminates the need for spark plug wires and offers a more efficient ignition system, commonly used in newer vehicles.
- Coil-Near-Plug (CNP): The ignition coil is located near the spark plug, but the two are connected via spark plug wires. This system is often found in older vehicles.
COP systems are more efficient and are becoming the standard in modern vehicles, as they reduce the number of components in the ignition system and improve the overall efficiency.
MSD Ignition Coils vs Stock Coils: Which Is Better?
MSD ignition coils are designed for high-performance vehicles and offer more power and greater spark intensity than stock coils. They are commonly used in modified or racing vehicles where maximum engine performance is crucial. Stock ignition coils, on the other hand, are typically used in standard vehicles for everyday driving.
MSD coils are built for durability and higher energy output, while stock coils are more than adequate for most daily drivers. The choice between the two depends on your vehicle’s needs.
NGK Iridium Spark Plugs vs Standard Spark Plugs: Which Should You Choose?
NGK Iridium spark plugs are known for their superior performance and durability. They are ideal for high-performance or well-maintained vehicles, as they provide a longer lifespan and better ignition. On the other hand, standard spark plugs (such as copper or platinum) are more affordable but tend to wear out quicker.
If you’re looking for longevity and better engine performance, NGK Iridium spark plugs are a great choice. However, if you’re on a budget and don’t mind replacing them more frequently, standard spark plugs can also do the job.
Conclusion: Keeping Your Ignition System in Top Shape
Understanding the roles of spark plugs, ignition coils, and coil packs is essential for maintaining your vehicle’s ignition system. These components work in tandem to ensure efficient combustion and optimal engine performance. Regular maintenance, timely replacement, and using quality parts can help extend the lifespan of your ignition system and keep your engine running smoothly.
